Water Jet Accessories
Water jet Boots 3000 bar
ART. NO: 5052080 5000
SIZES: EUR 42-48

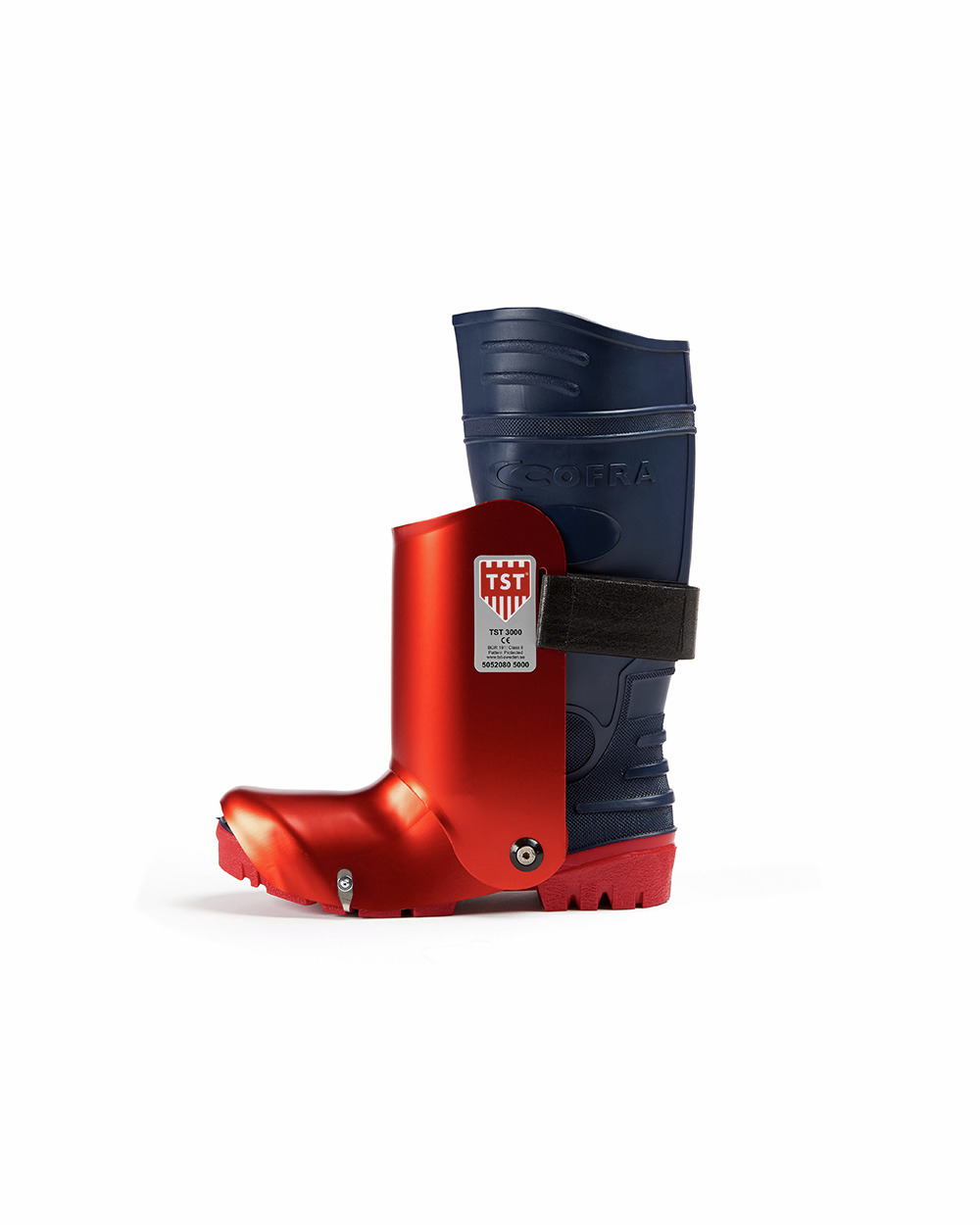

Find my size- Water jet Boots 3000 bar withstands “everything” within water jetting on account of its fixed aluminium gaiters.
- The gaiters are moulded and jointed, providing excellent comfort and mobility.

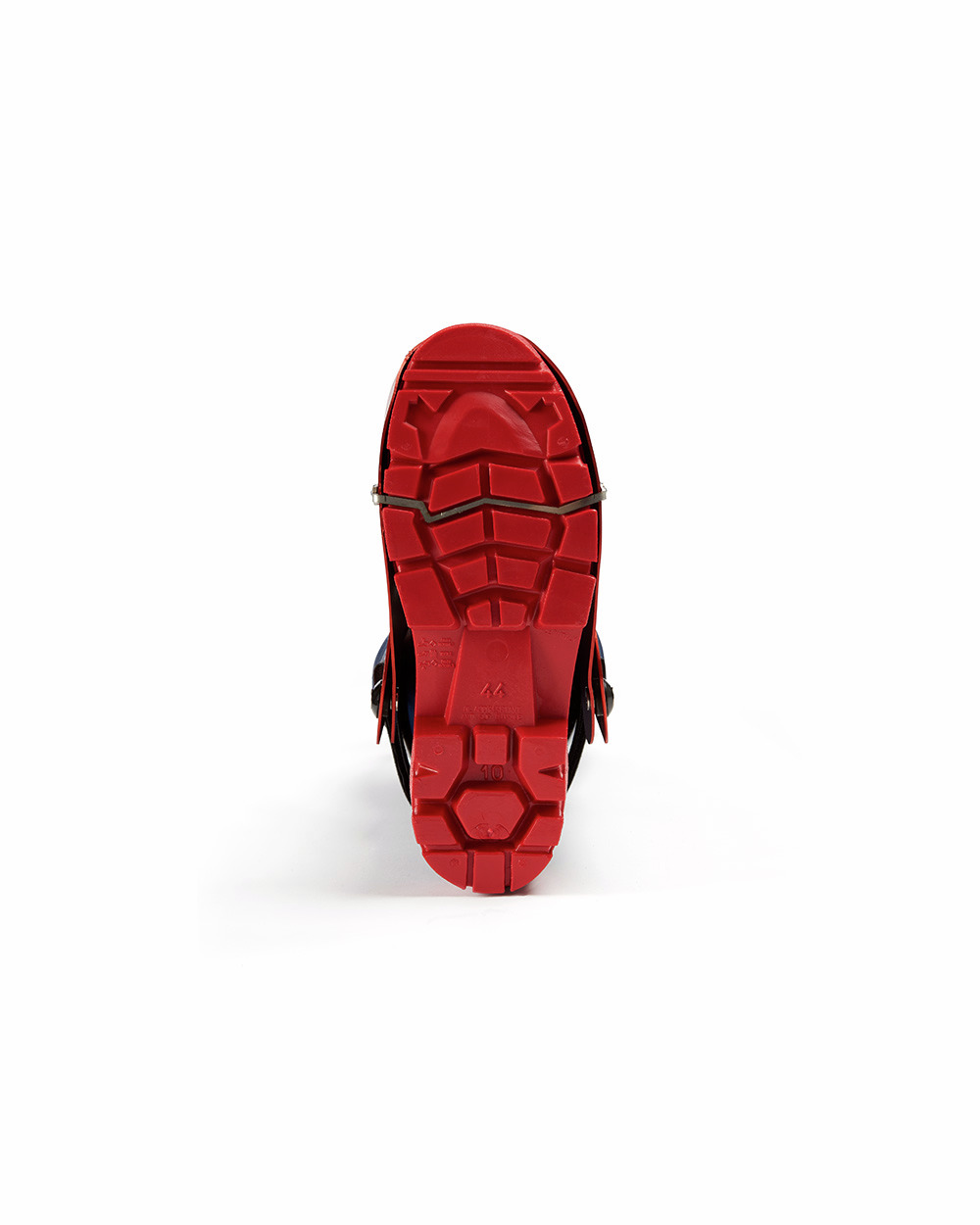

- The water jet Boots have chem resistant anti-penetration soles.
- Sensitive to small stones and not suitable for uneven ground. For that we recommend the Gaiters.
- Certified in accordance with:
– Regulation (EU) 2016/425
– Safety footwear: ISO 20345:2011

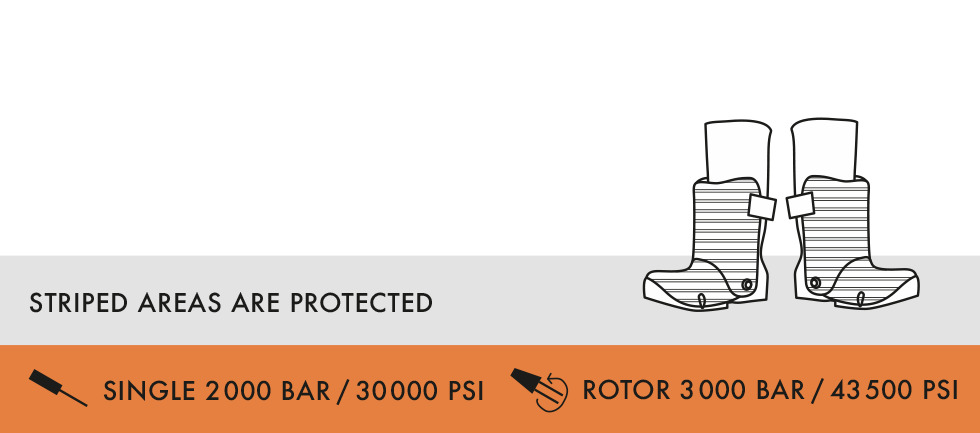

This PPE garment is designed and certified to protect the wearer against injury caused by accidental exposure to moving high-pressure jets. The garment provides high-pressure water jet protection in specific areas, illustrated as striped in the image below. On the garment, the glossy outer fabric indicates where the protective areas are.
The level of protection is shown on the garment label. EliteOperator® has Protection Level 20/30, corresponding to:
2 000 bar / 30 000 psi single jet
3 000 bar / 43 500 psi rotor jet
How to read the test results: There is no international standard for the testing of protection levels. Therefore the testing can differ significantly between companies. For this reason it is crucial to be aware of the differences and how and what to properly compare. A protection level of eg. 3 000 bar can mean different things, depending on the pressure, flow, nozzle, distance or speed used while testing. To verify the protective qualities we have chosen the most common working conditions when performing our tests of notified body.
Most nozzles perform at their best between 50 and 100 mm, therefore we have chosen the distance of 75 mm. Rotating tests have been performed with two nozzles (adding more nozzles result in a lower overall impact).
Note! Different values, eg. pressure, flow, nozzle, distance or speed, can give significantly different results!
| Product Category | Pressure, Bar | Pressure, psi | Flow, Litre/minute | Flow, Gallon/minute | Nozzle, Type | Nozzle, Quantity | Nozzle, Diameter mm | Nozzle, Diameter in. | RPM, Revolutions per minute | Distance, mm | Distance, in. | Linear speed, m/s | Linear speed, in./sec | Result |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| EliteOperator | 2000 | 30 000 | 17.9 | 4.7 | Single | 1 | 0.8 | 0.031 | - | 75 | 3 | 0.5 | 20 | No penetration |
| EliteOperator | 3000 | 43 500 | 19.5 | 5.2 | Rotor | 2 | 0.6 | 0.024 | 3000 | 75 | 3 | 0.5 | 20 | No penetration |
All of our personal protective equipment (PPE) is certified in accordance with Regulation (EU) 2016/425.
TST Sweden is certified in accordance with ISO 9001:2015 and ISO 14001:2015.
Wash the boots regularly with lukewarm soapy water. Avoid solvents and scrubbing with a coarse brush. Allow to dry at room temperature and avoid contact with heating radiators. Store the boots upright in a cool dark place. For rubber surface care of the boots, we recommend silicon oil or glycerine.
Boots exposed to affect its protective ability must be rejected.
| EUR | US | UK |
|---|---|---|
| 42 | 9 | 9 |
| 43 | 9 ½ | 9 ½ |
| 44 | 10 | 10 |
| 45 | 10 ½ | 10 ½ |
| 46 | 11 | 11 |
| 47 | 12 | 12 |
| 48 | 13 | 13 |
