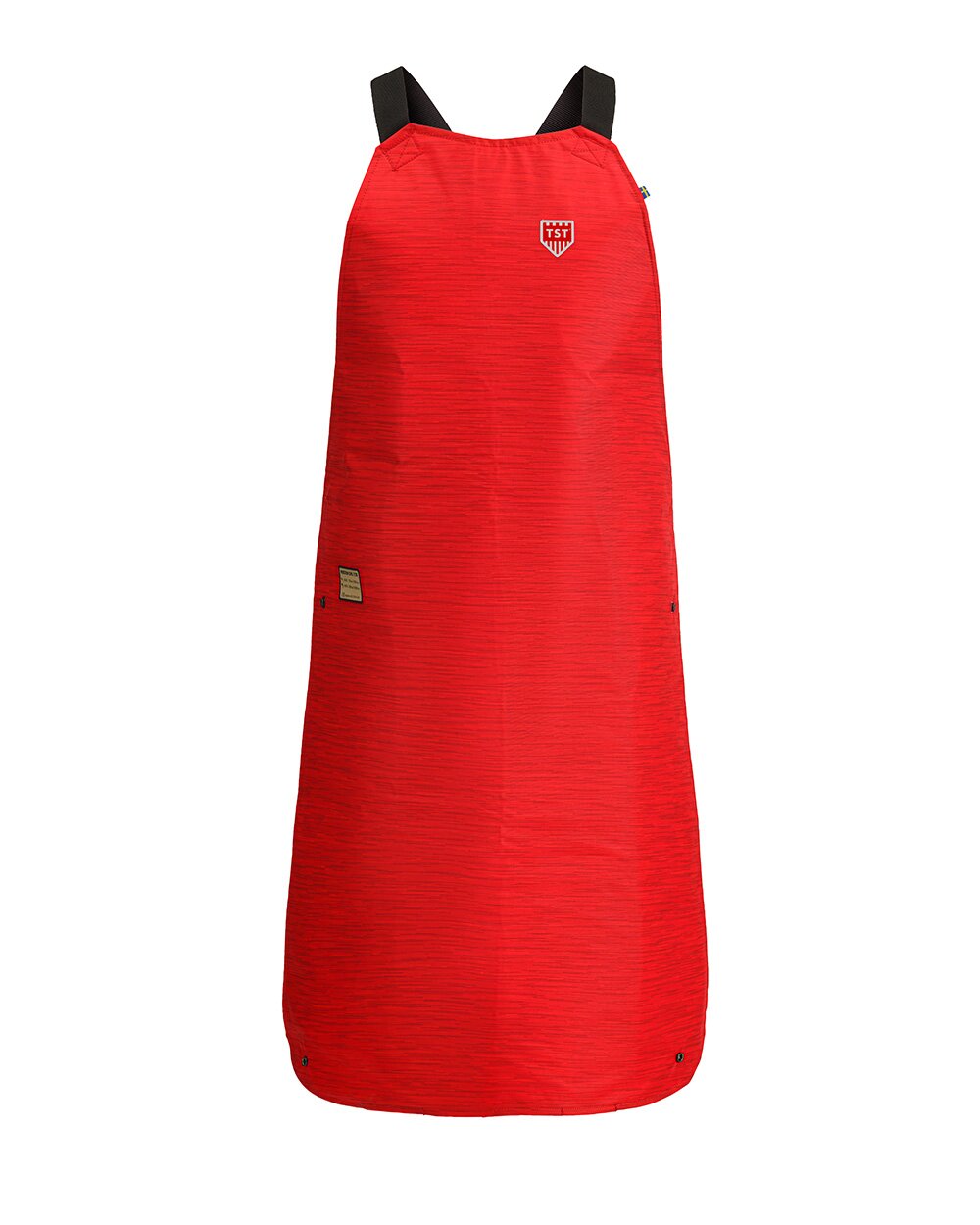

UltraOperator®
Water jetting Apron
ART. NO: 5423050 5526
SIZES: One size
- High-pressure water jet protection:
Single nozzle: 700 bar / 10 000 psi
Rotor nozzle: 2 000 bar / 30 000 psi - Water jetting Apron with protection covering the entire Apron.

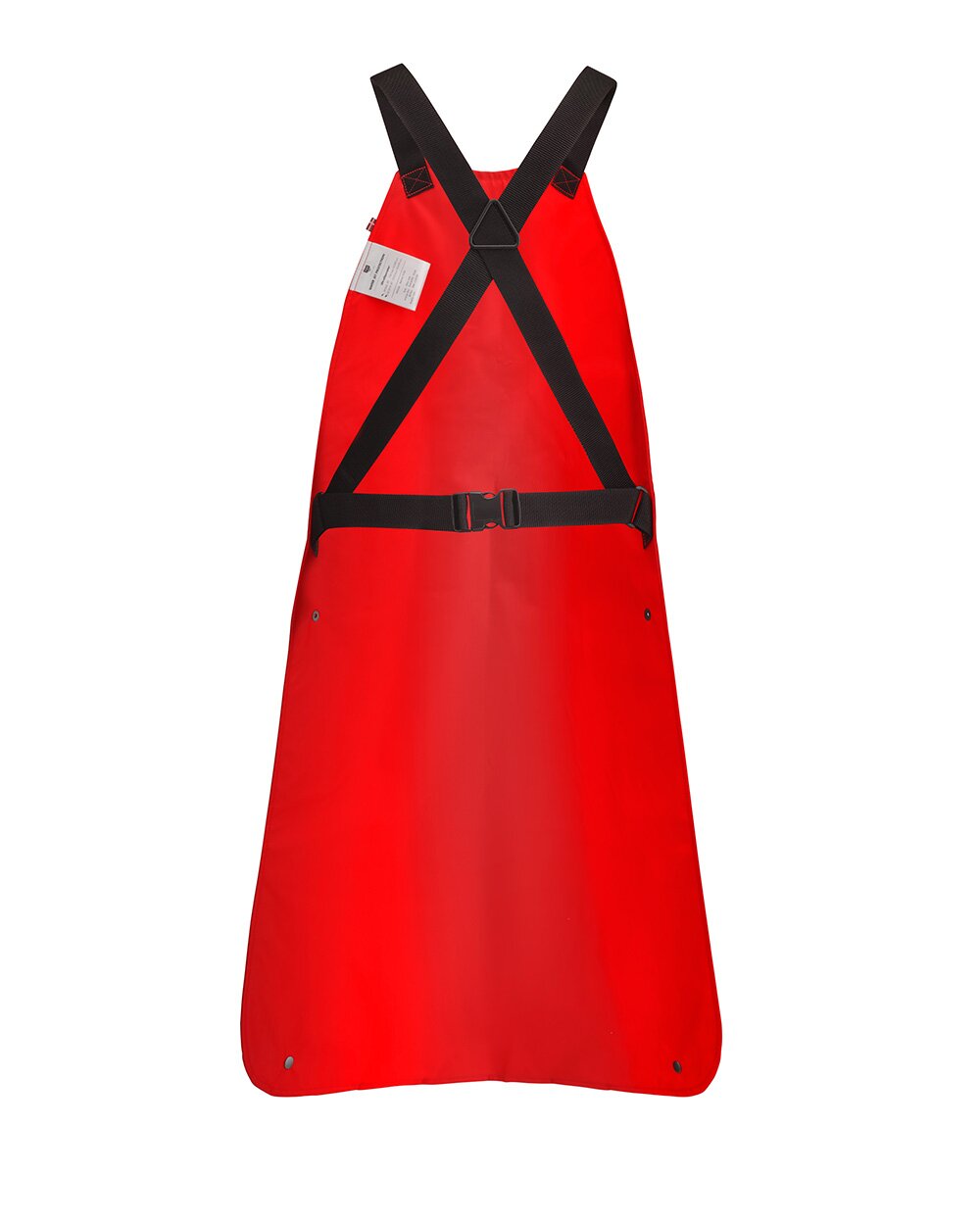

- Adjustable shoulder strap for comfort and easy donning.
- Quick and easy to put on and remove.
- One size, suitable for shared use between multiple operators.

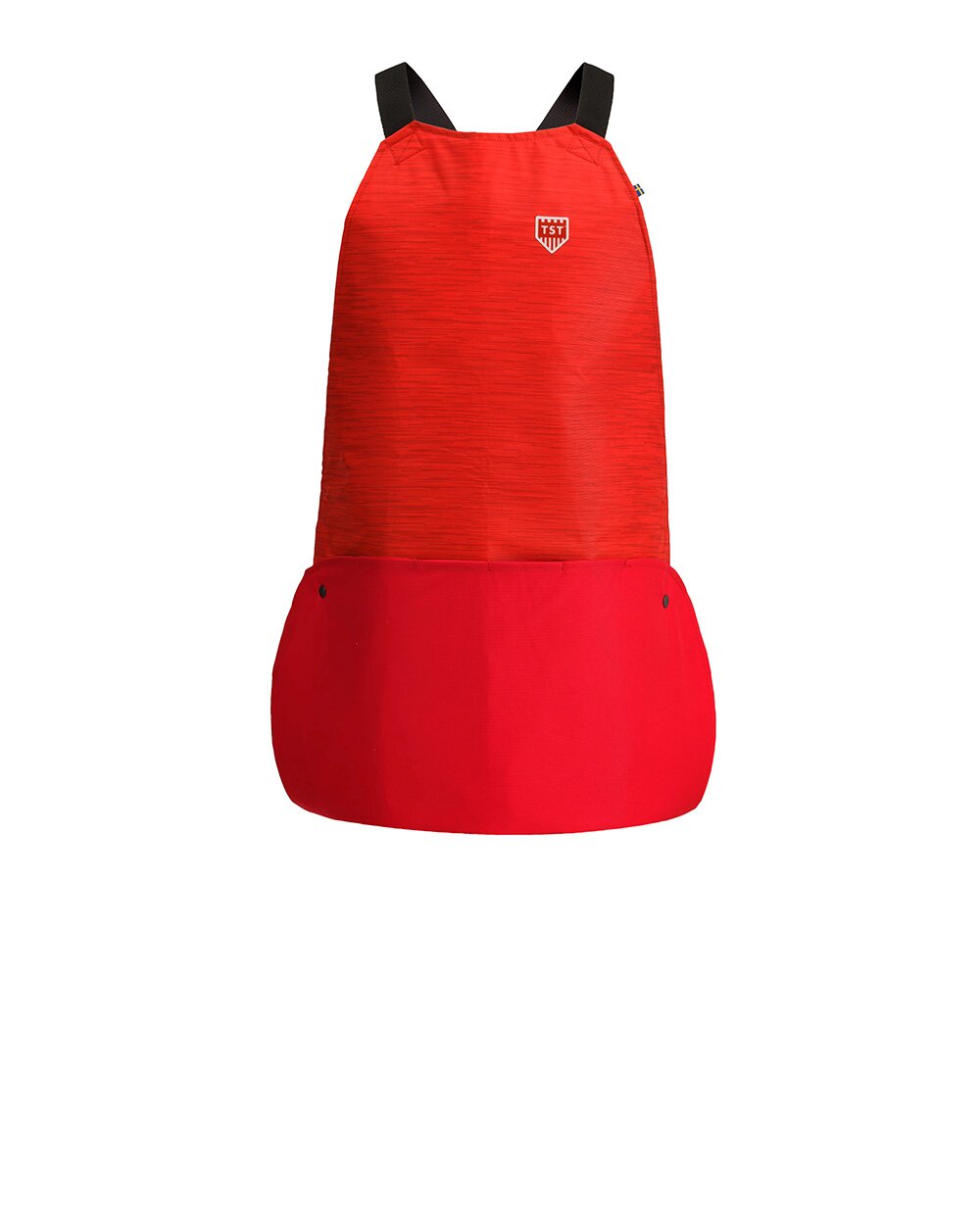

- Can be folded and secured with snap fasteners for improved mobility on stairs and ladders.
- Recommended for use in combination with Hand protections.
- Sales launch September 2026 – not yet available for sale.

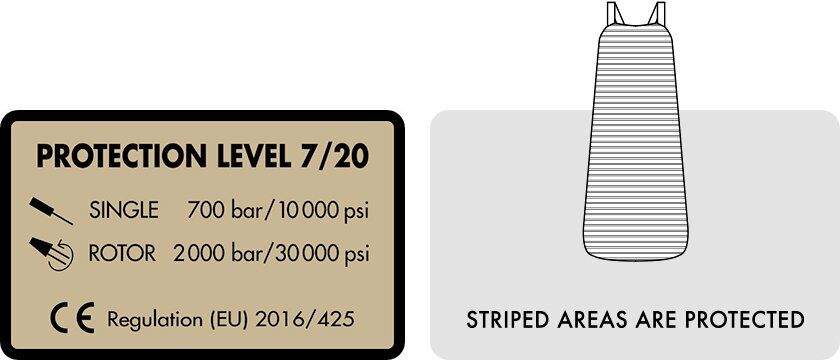

This garment is designed to protect the wearer against injury caused by accidental exposure to moving high-pressure jets. The garment provides high-pressure water jet protection in specific areas. On the garment, the patterned outer fabric indicates where the protective areas are.
UltraOperator® has Protection Level 7/20, corresponding to:
700 bar / 10 000 psi single jet
2 000 bar / 30 000 psi rotor jet
Note: The UltraOperator® products are scheduled for launch in September 2026. They are currently pending certification and are not yet available for sale or use.
How to read the test results: There is no international standard for the testing of protection levels. Therefore the testing can differ significantly between companies. For this reason it is crucial to be aware of the differences and how and what to properly compare. A protection level of eg. 2 000 bar can mean different things, depending on the pressure, flow, nozzle, distance or speed used while testing. To verify the protective qualities we have chosen the most common working conditions when performing our tests of notified body.
Most nozzles perform at their best between 50 and 100 mm, therefore we have chosen the distance of 75 mm. Rotating tests have been performed with two nozzles (adding more nozzles result in a lower overall impact).
Note! Different values, eg. pressure, flow, nozzle, distance or speed, can give significantly different results!
| Product Category | Pressure, Bar | Pressure, psi | Flow, Litre/minute | Flow, Gallon/minute | Nozzle, Type | Nozzle, Quantity | Nozzle, Diameter mm | Nozzle, Diameter in. | RPM, Revolutions per minute | Distance, mm | Distance, in. | Linear speed, m/s | Linear speed, in./sec | Result |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| UltraOperator | 700 | 10 000 | 16,6 | 4,4 | Single | 1 | 1 | 0,04 | - | 75 | 3 | 0.5 | 20 | No penetration |
| UltraOperator | 2000 | 30 000 | 15,9 | 4,2 | Rotor | 2 | 0.6 | 0,02 | 3000 | 75 | 3 | 0.5 | 20 | No penetration |
