UltraOperator®
Water jetting Coat
ART. NO: 5424050 5526
SIZES: S/M,L/XL,2XL/3XL,4XL/5XL
Find my size- High-pressure water jet protection:
Single nozzle: 700 bar / 10 000 psi
Rotor nozzle: 2 000 bar / 30 000 psi - Water jetting Coat with protection covering the full front of the torso and the leg area covered by the garment, and around the neck, shoulders, and forearms.
- Back closure with hook-and-loop fastening.
- Soft neoprene inner cuffs prevent water ingress.

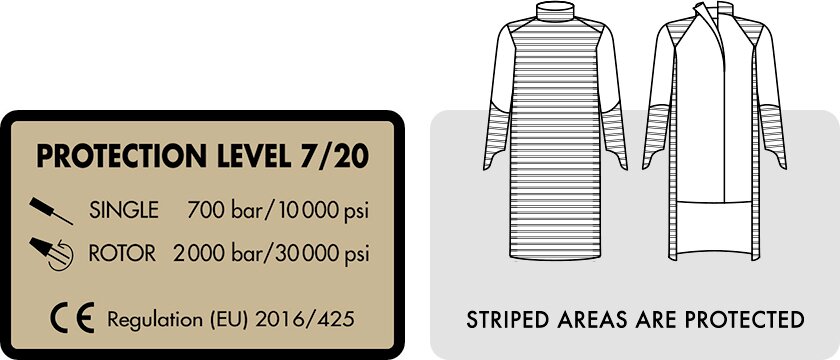

This PPE garment is designed and certified to protect the wearer against injury caused by accidental exposure to moving high-pressure water jets. It provides high-pressure water jet protection in specific areas, illustrated as striped in the image below. On the garment, the patterned outer fabric indicates where the protective areas are.
The level of protection is shown on the garment label. UltraOperator® has Protection Level 7/20, corresponding to:
700 bar / 10 000 psi single jet
2 000 bar / 30 000 psi rotor jet
How to read the test results: There is no international standard for the testing of protection levels. Therefore the testing can differ significantly between companies. For this reason it is crucial to be aware of the differences and how and what to properly compare. A protection level of eg. 2 000 bar can mean different things, depending on the pressure, flow, nozzle, distance or speed used while testing. To verify the protective qualities we have chosen the most common working conditions when performing our tests of notified body.
Most nozzles perform at their best between 50 and 100 mm, therefore we have chosen the distance of 75 mm. Rotating tests have been performed with two nozzles (adding more nozzles result in a lower overall impact).
Note! Different values, eg. pressure, flow, nozzle, distance or speed, can give significantly different results!
| Product Category | Pressure, Bar | Pressure, psi | Flow, Litre/minute | Flow, Gallon/minute | Nozzle, Type | Nozzle, Quantity | Nozzle, Diameter mm | Nozzle, Diameter in. | RPM, Revolutions per minute | Distance, mm | Distance, in. | Linear speed, m/s | Linear speed, in./sec | Result |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| UltraOperator | 700 | 10 000 | 16,6 | 4,4 | Single | 1 | 1 | 0,04 | - | 75 | 3 | 0.5 | 20 | No penetration |
| UltraOperator | 2000 | 30 000 | 15,9 | 4,2 | Rotor | 2 | 0.6 | 0,02 | 3000 | 75 | 3 | 0.5 | 20 | No penetration |
Our clothes can be hand cleaned with a brush and TST Grease Remover or a soap solution. Rinse with clean water. Allow to dry on a hanger or a well ventilated area.
Store the garments dry and out of direct sunlight. Zippers and hooks & loops are sensitive to dirt and should always be kept clean.
To extend the lifespan of the garments, we recommend rain and/or chemical protection on the outside of the garments in exposed environments. If garments are exposed to chemicals; rinse directly with clean water.
CHEST
Measure the circumference of your chest at its widest point.
WAIST
Measure the circumference of your waist at the top of your hipbone, usually at the level of your belly button.
| Sizes (Mens) | Height cm | Height ft. and inch | Chest cm | Chest inch | Waist cm | Waist inch |
|---|---|---|---|---|---|---|
| S/M | 168 - 184 | 5' 6" - 6' ½" | 92 - 104 | 36 - 41 | 80 - 92 | 31 - 37 |
| L/XL | 176 - 192 | 5' 9" - 6' 4" | 108 - 120 | 42 - 48 | 97 - 114 | 38 - 45 |
| 2XL/3XL | 187 - 206 | 6' 2" - 6' 9" | 124 - 136 | 49 - 54 | 102 - 138 | 47 - 55 |
| 4XL/5XL | 187 - 206 | 6' 2" - 6' 9" | 140 - 152 | 55 - 60 | 144 - 162 | 56 - 64 |
