WSS
Safety Curtain
ART. NO: 5800010 5885
SIZES: 152 x 250 cm

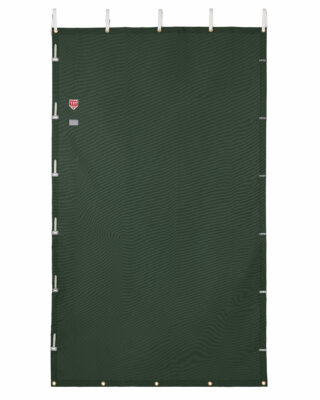

- Can be put together to form a protective wall of desired length.
- Each section is approx. 152x250 cm/5x8.2 ft. and when put together they build 147 cm/4.8 ft. per curtain.

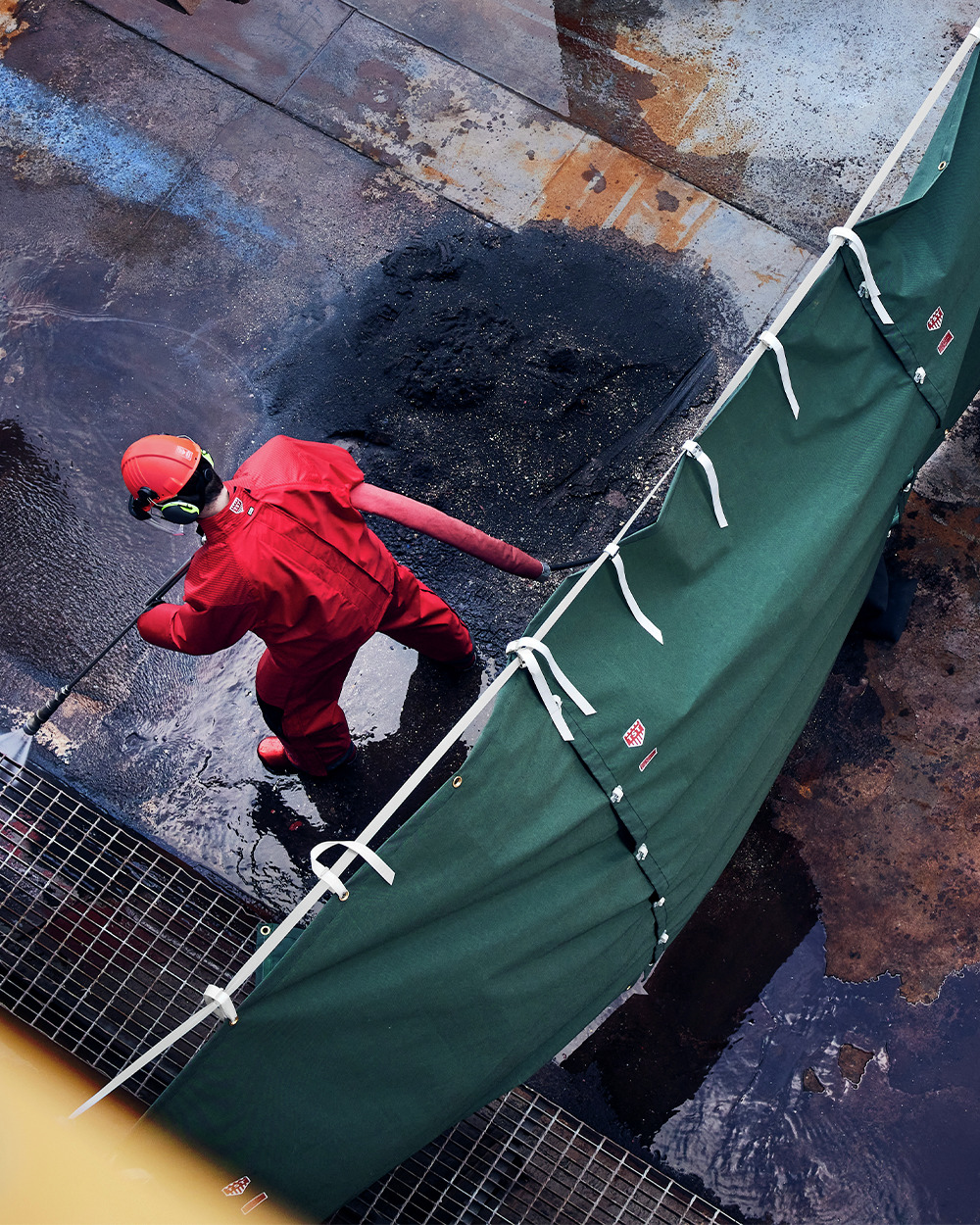

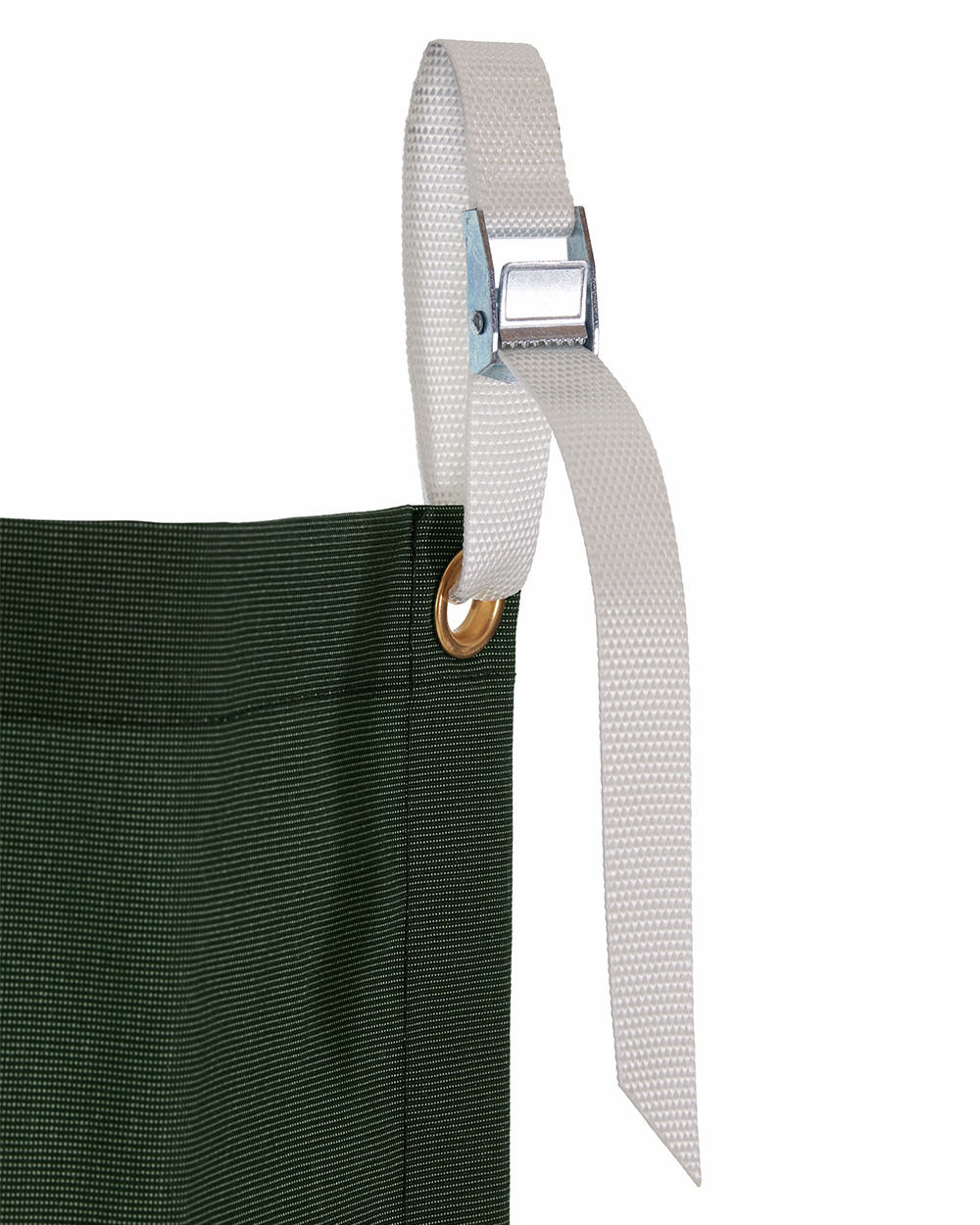

- Straps on top for easy mounting and holes at the bottom for further securing.

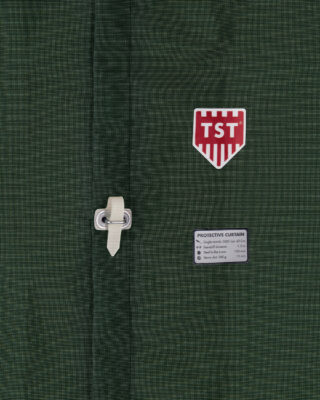

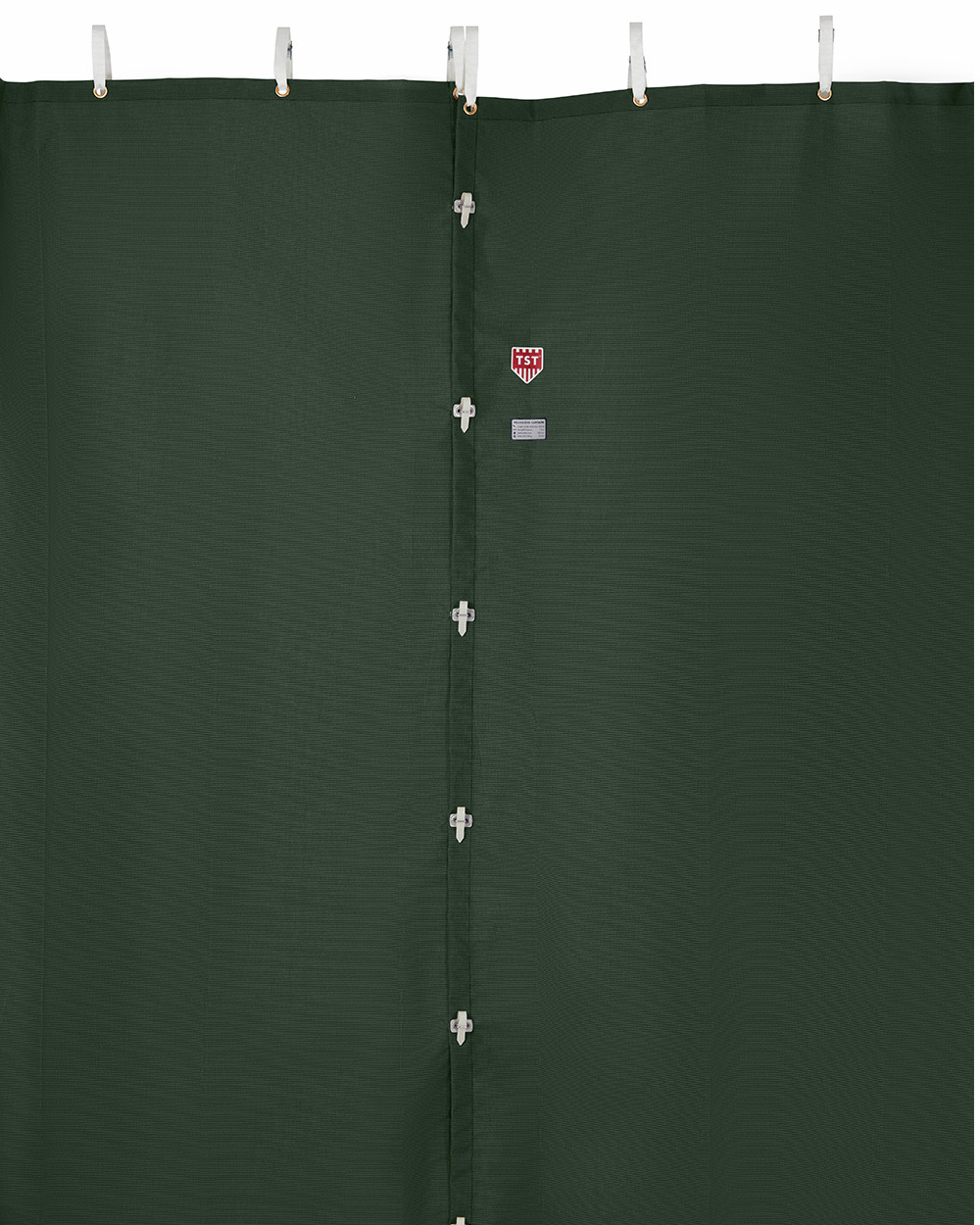

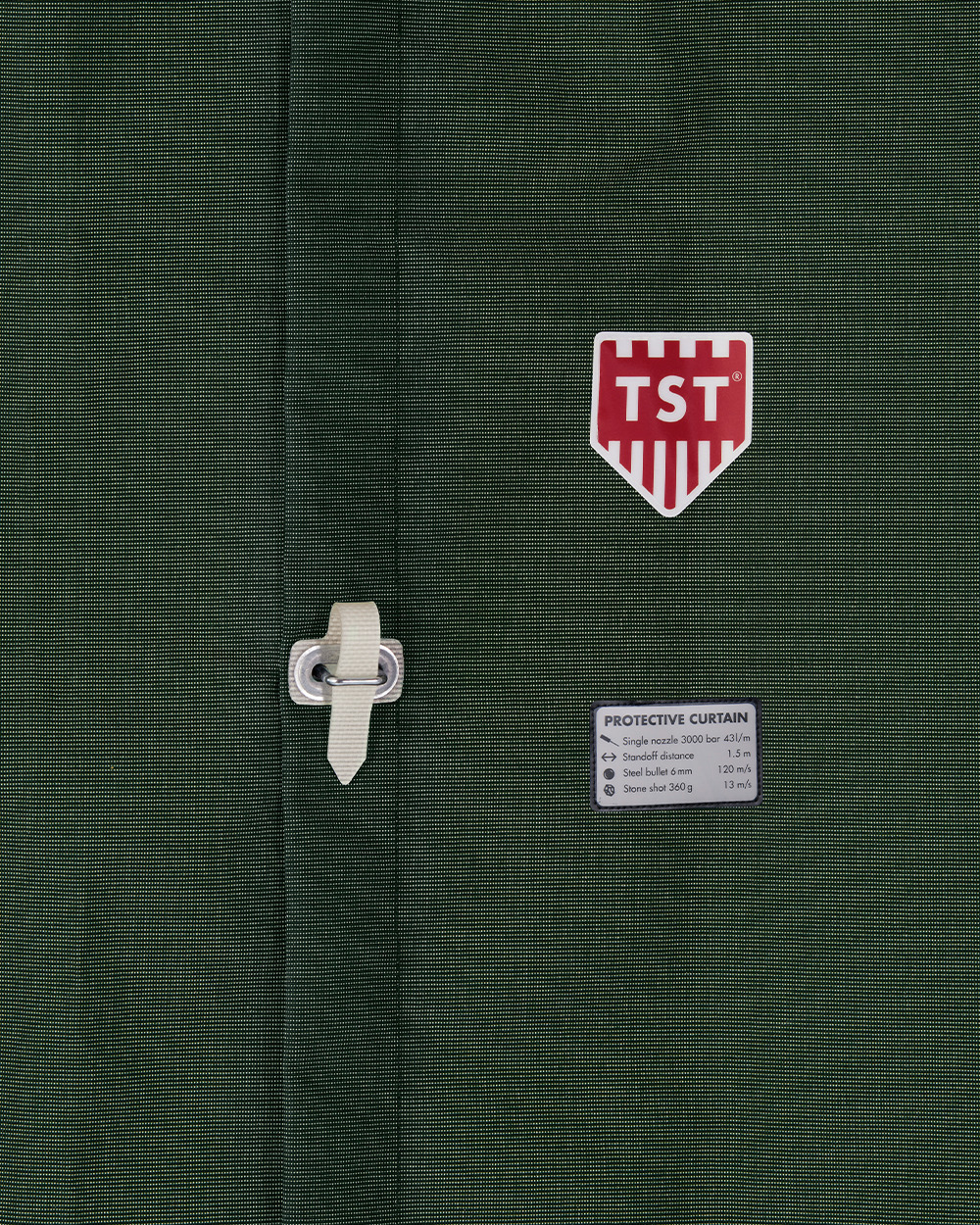

- The sections are easy to connect with strong,easily handled locks.
How to read the test results: There is no international standard for the testing of protection levels. Therefore the testing can differ significantly between companies. For this reason it is crucial to be aware of the differences and how and what to properly compare. A protection level of eg. 3 000 bar can mean different things, depending on the pressure, flow, nozzle, distance or speed used while testing.
Note! Different values, eg. pressure, flow, nozzle, distance or speed, can give significantly different results!
HIGH PRESSURE WATER JET TEST
| Product | Pressure, Bar | Pressure, psi | Flow, Litre/minute | Flow, Gallon/minute | Nozzle, Type | Newton | Distance, m | Distance, ft | Result |
|---|---|---|---|---|---|---|---|---|---|
| Curtain | 1100 | 16 000 | 100 | 26.4 | Single | 740 | 2.3 m | 7.5 ft | No penetration |
| Curtain | 3000 | 43 500 | 43 | 11.4 | Single | 550 | 1.5 m | 5 ft | No penetration |
PROJECTILE TEST
| Projectile | Linear speed, m/s | Linear speed, ft/sec | Number of textile layers | Result | ISO Standard |
|---|---|---|---|---|---|
| Steel bullet, 6 mm | 120 | 393.7 | 1 | No penetration | EN ISO 168 |
| Stone short, 360 g | 13 | 42.7 | 1 | No penetration | EN ISO 1794-1 |

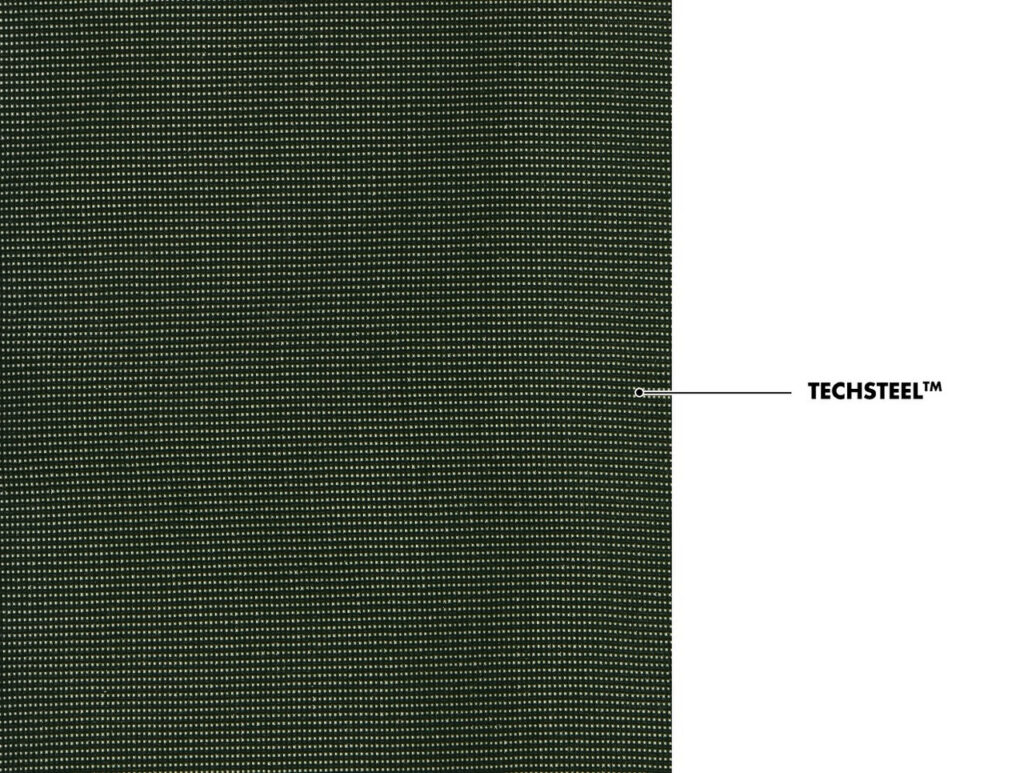

Our Workplace Safety Solution range is made of an extremely strong fabric called Techsteel™. The fabric is both dirt and water repellent, which makes the products easy to clean. The material is furthermore reinforced with Vectran® (LCP) for maximum strength and durability. The request for these qualities comes originally from the industry of concrete removal and demolition. Durability: > 500 000 Martindale.
